PENACOOK PLACE

Master Development Site Plan Study

Haverhill, MA

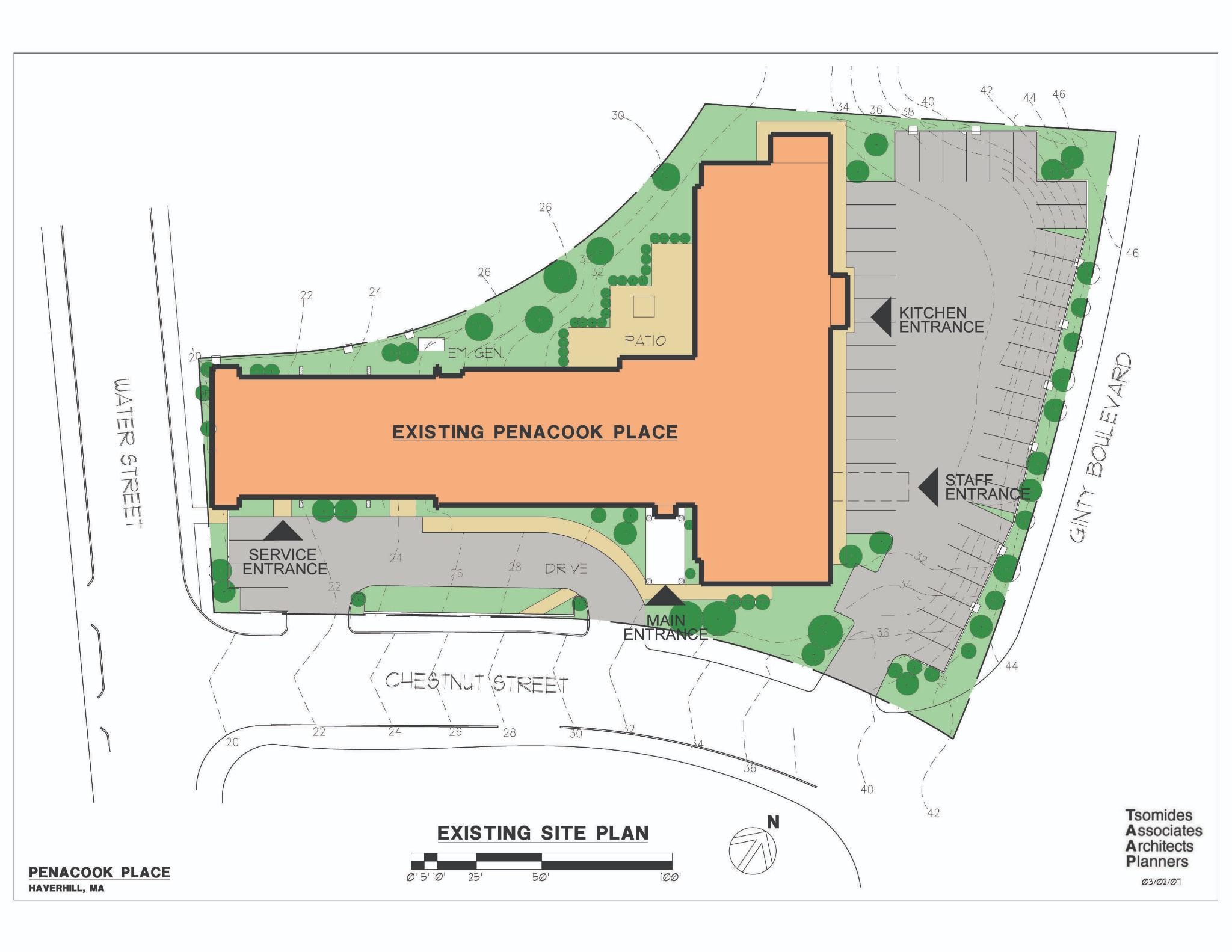

EXISTING SITE PLAN

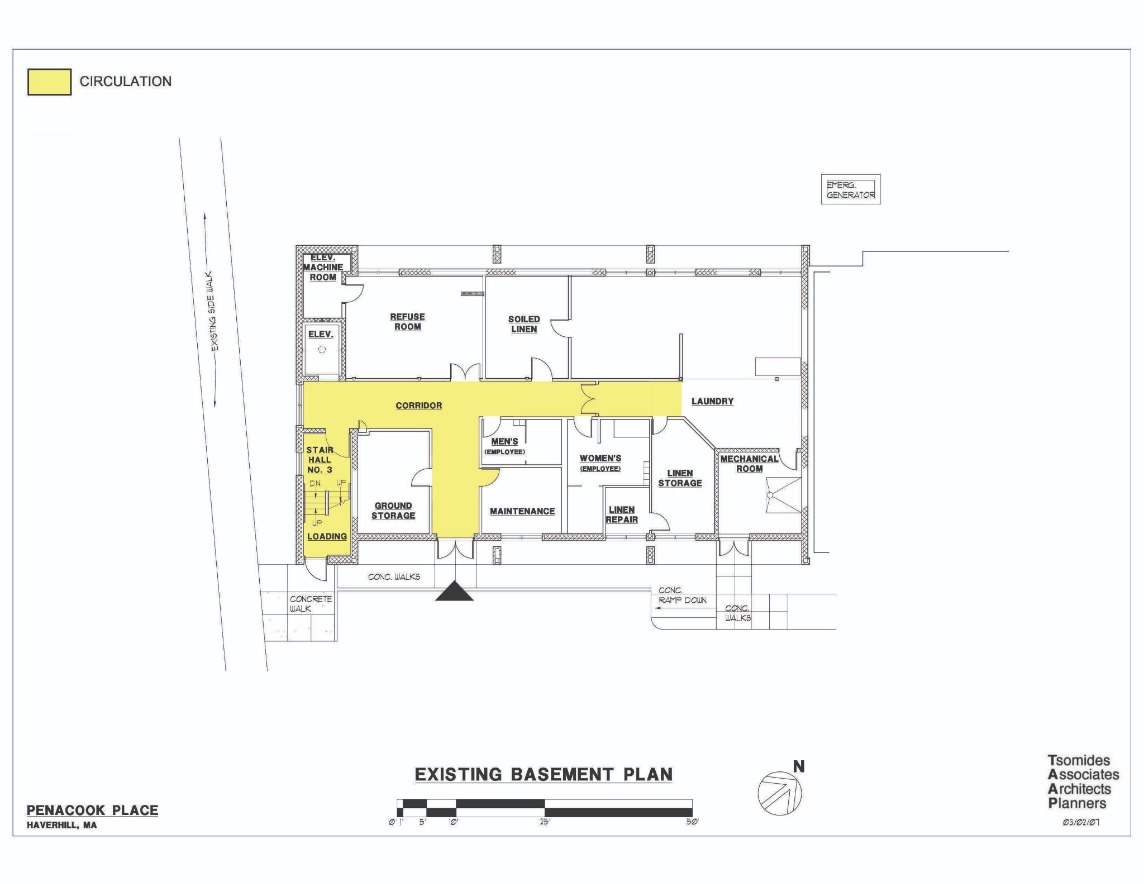

EXISTING BASEMENT PLAN

EXISTING FIRST FLOOR PLAN

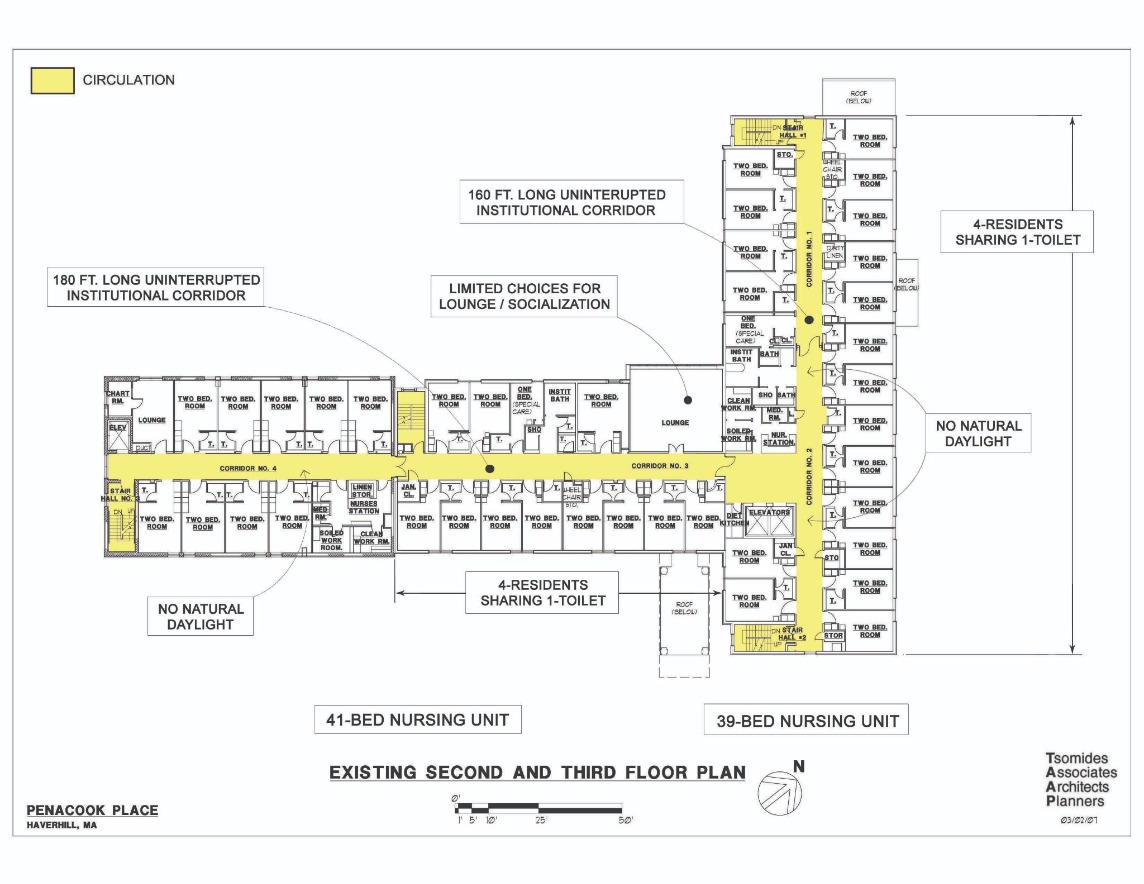

EXISTING SECOND & THIRD FLOOR PLAN

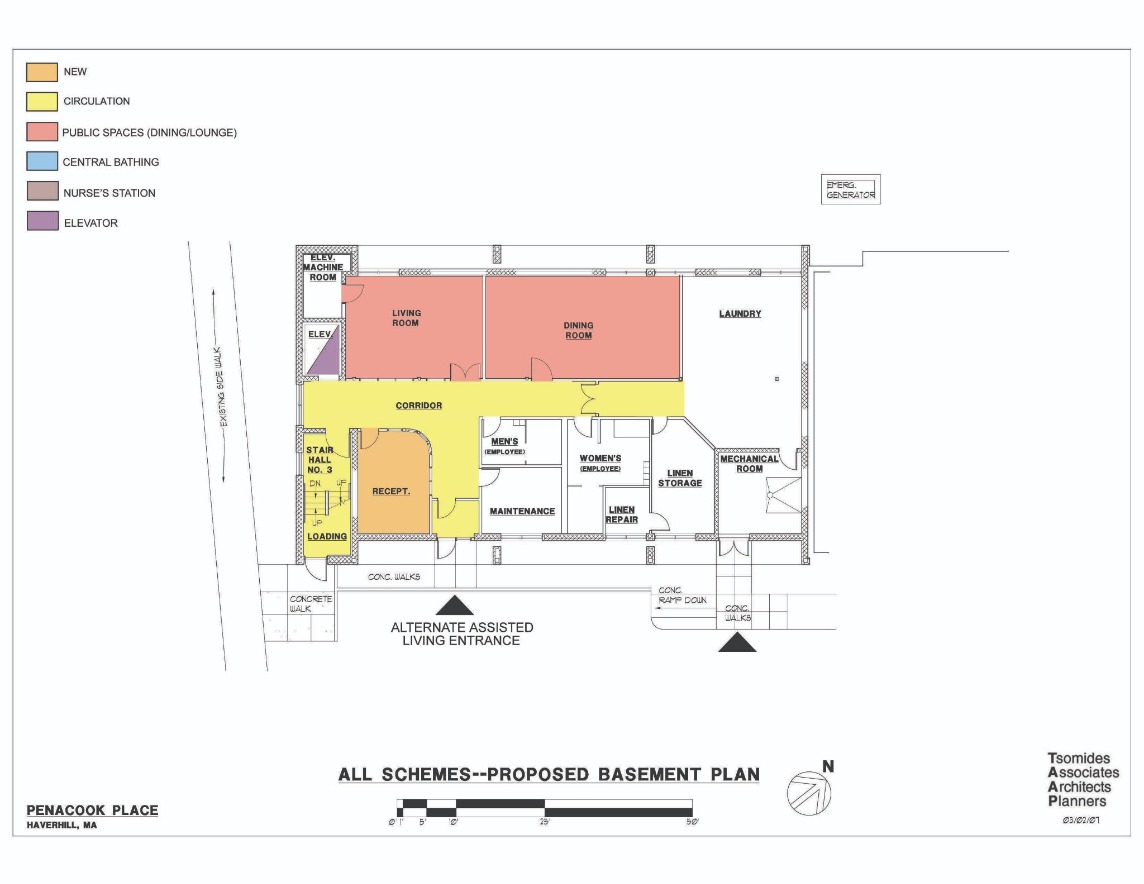

ALL SCHEMES - PROPOSED BASEMENT PLAN

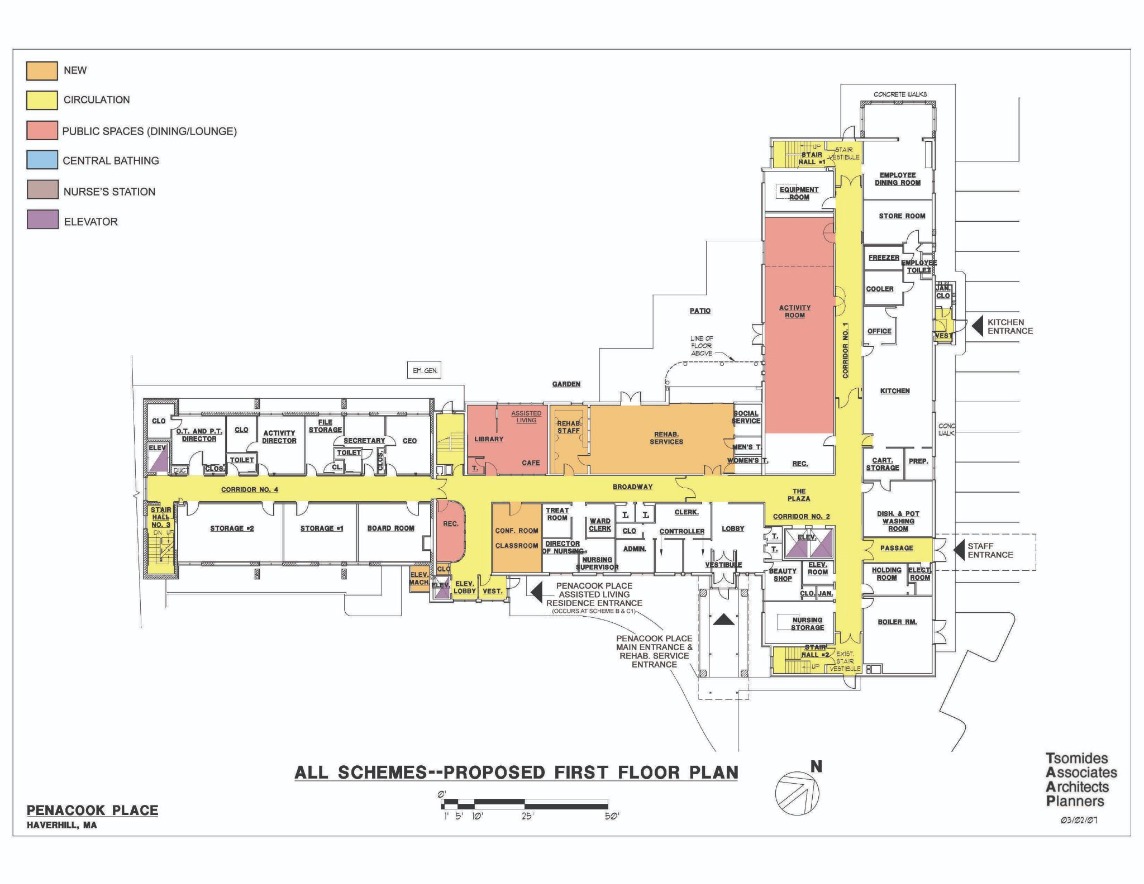

ALL SCHEMES - PROPOSED FIRST FLOOR PLAN

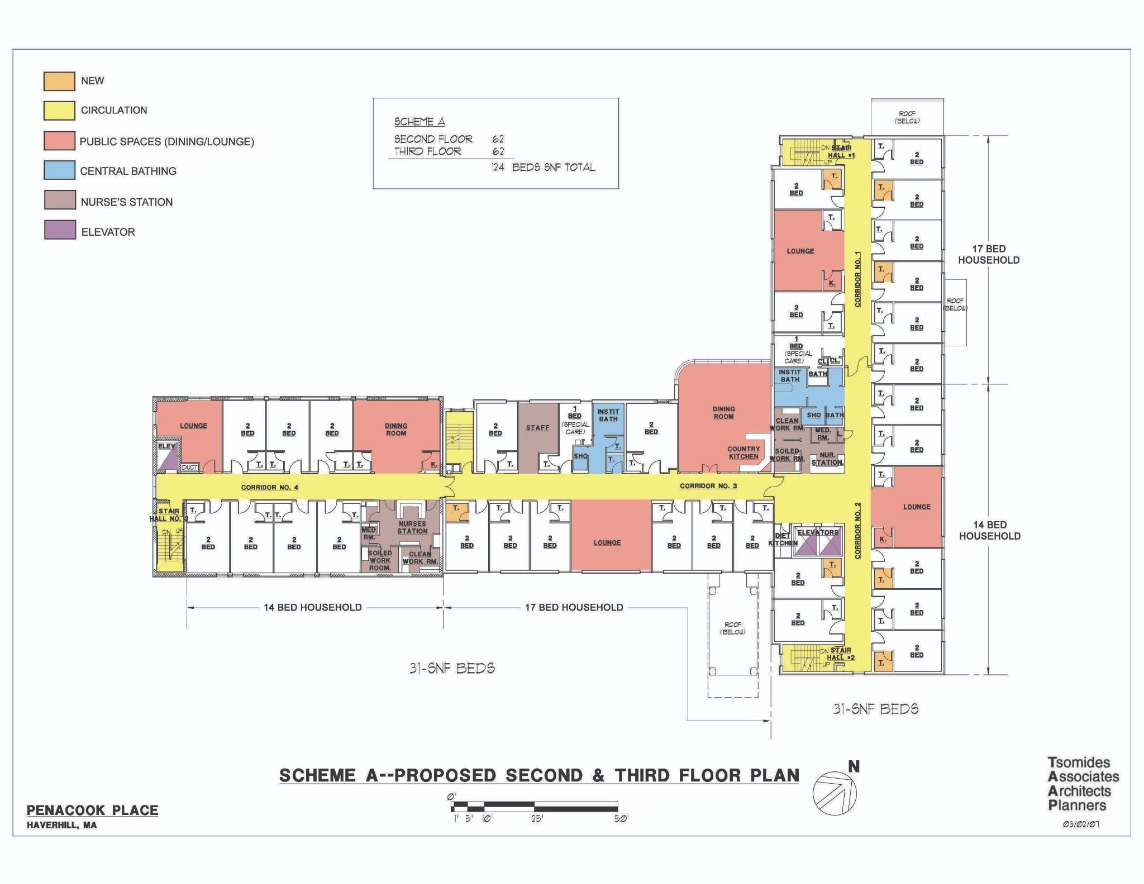

SCHEME A - PROPOSED SECOND & THIRD FLOOR PLAN

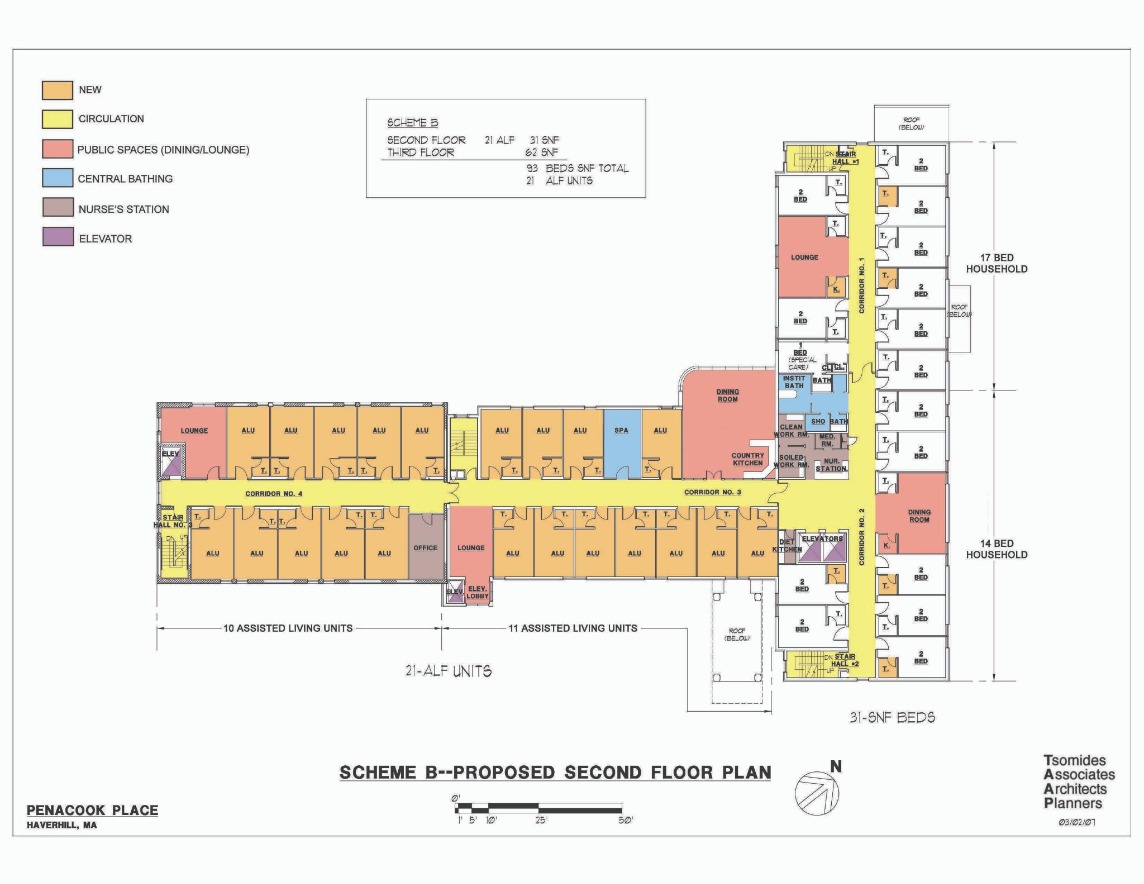

SCHEME B - PROPOSED SECOND FLOOR PLAN

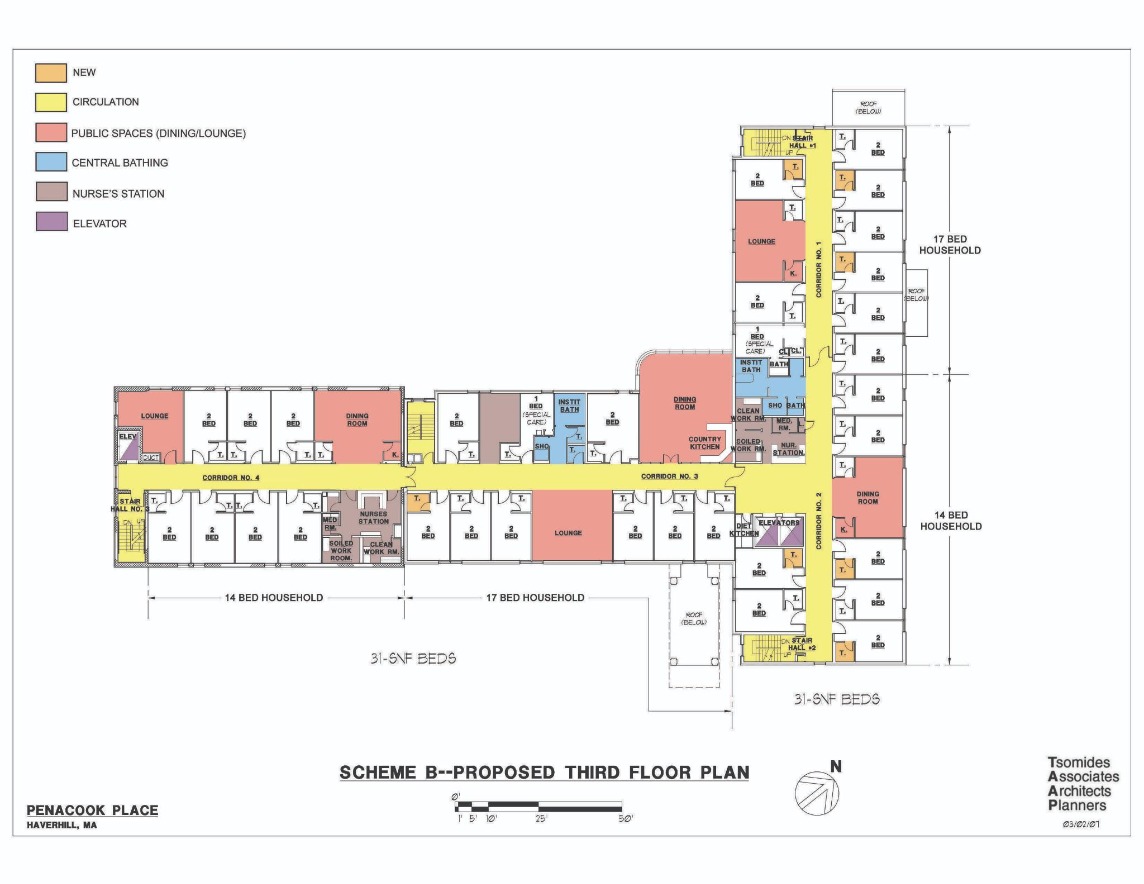

SCHEME B - PROPOSED THIRD FLOOR PLAN

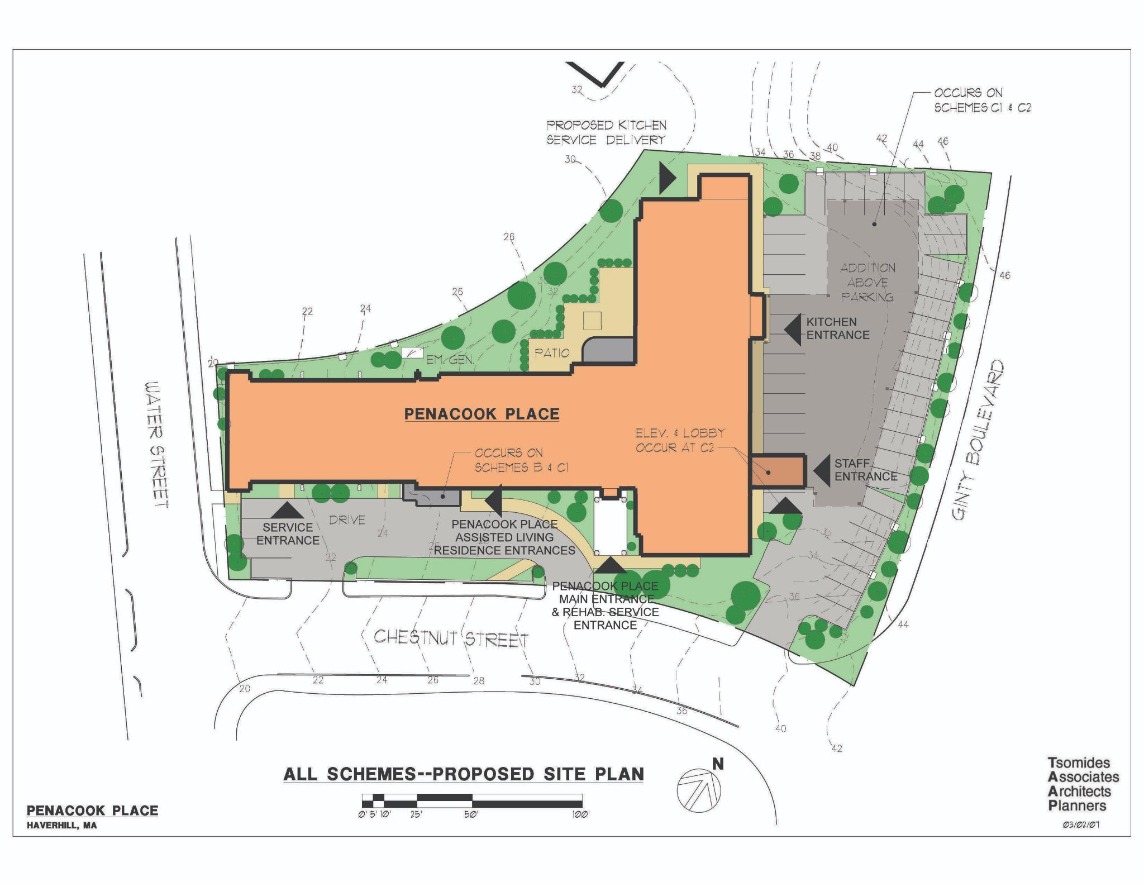

ALL SCHEMES - PROPOSED SITE PLAN

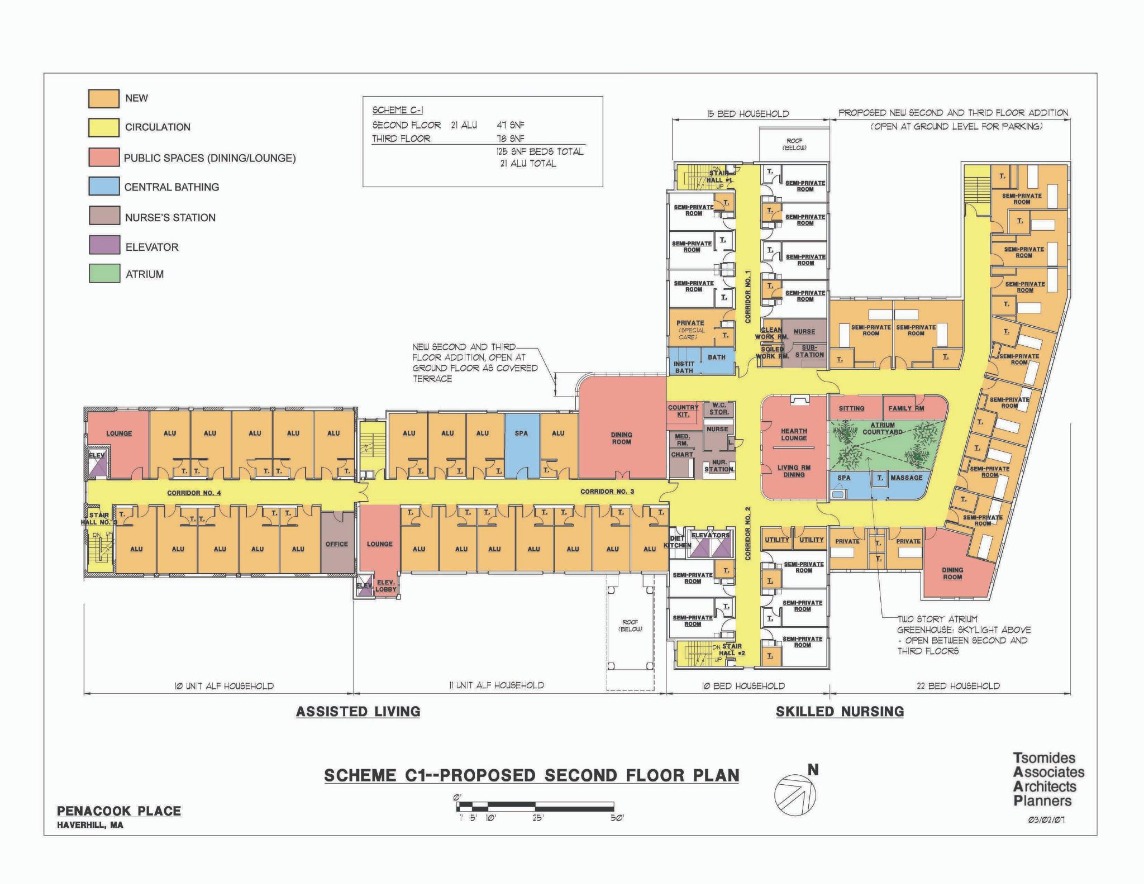

SCHEME C1 - PROPOSED SECOND FLOOR PLAN

SCHEME C1: PROPOSED THIRD FLOOR PLAN

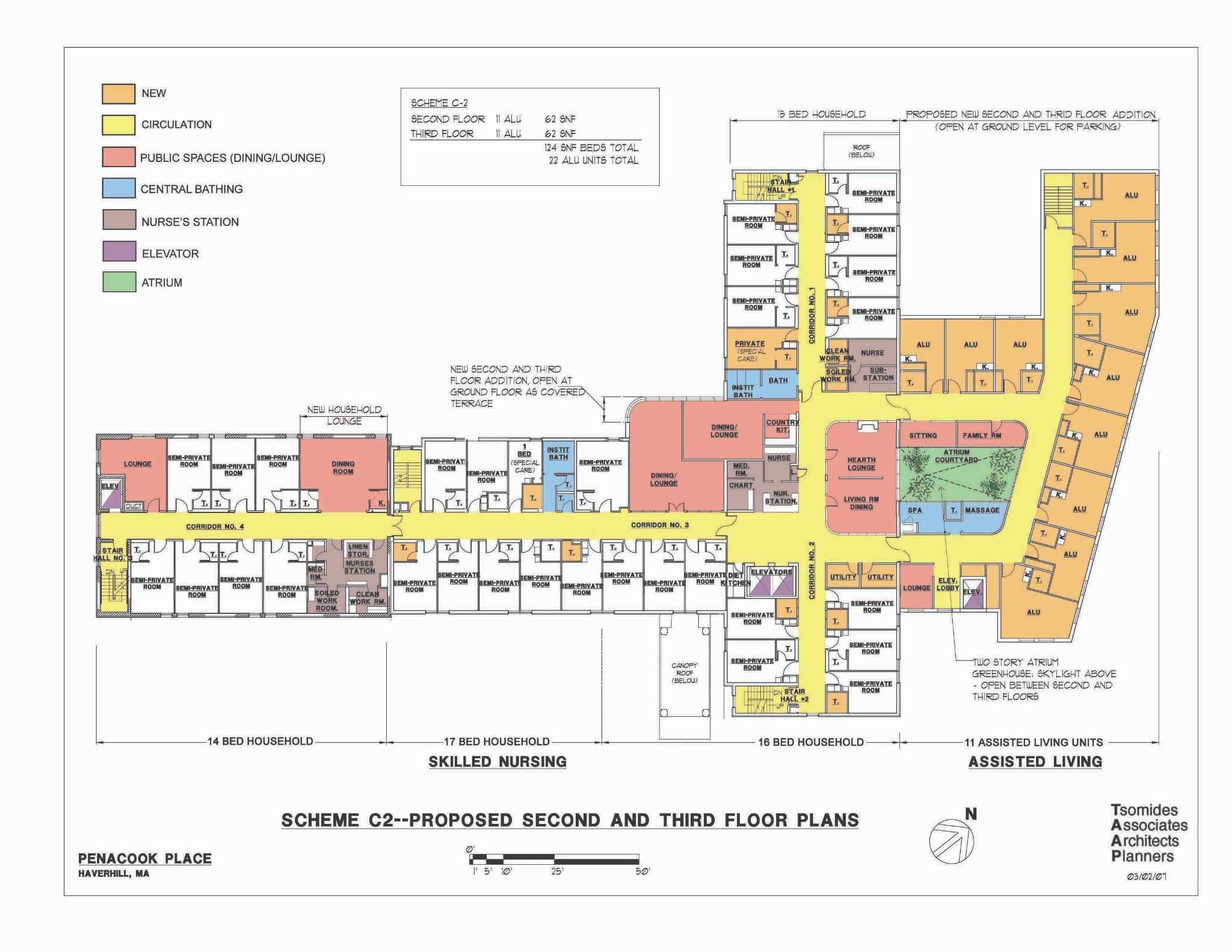

SCHEME C2: PROPOSED SECOND & THIRD FLOOR PLAN

Master Plan Conceptual Design/Feasibility Study

Revitalization of Penacook Place, Haverhill, MA



SCHEME ‘A’                                    South Wing     North Wing

Reduce number of SNF Beds from

current 160 to 123-130, to create

residential homelike “Households”



                        Third Floor      31 SNF            31 SNF

                        Second Floor   31 SNF            31 SNF

                                                62                    62                    = 124-Bed SNF



SCHEME ‘B’

Reduce number of SNF Beds from

current 160 to 100, plus 30 Assisted

Living Units with separate entrance.



                        Third Floor      31 SNF            31 SNF

                        Second Floor   21 ALF           31 SNF

                                                31                    62                    =  93-Bed SNF

                                                21                                                21-ALF Units



SCHEME ‘C-1’                    South Wing      North Wing     New Wing Addition



                        Third Floor      31 SNF            25 SNF            22 SNF

                        Second Floor   21 ALF           25 SNF            22 SNF

                                                31                    50                    44           = 125-Bed SNF

                                                21                                                                21-ALF Units



SCHEME ‘C-2’                     South Wing     North Wing     New Wing Addition



                        Third Floor      31 SNF            31 SNF            11 ALF

                        Second Floor   31 SNF            31 SNF            11 ALF

                                                62                    62                    22 ALF     = 124-Bed SNF

                                                                                                                       22-ALF Units



SCHEME ‘C-3’

New Second Level Parking
