MARY IMMACULATE RESIDENTIAL COMMUNITY

A.K.A. THE PROTECTORY

Lawrence, MA

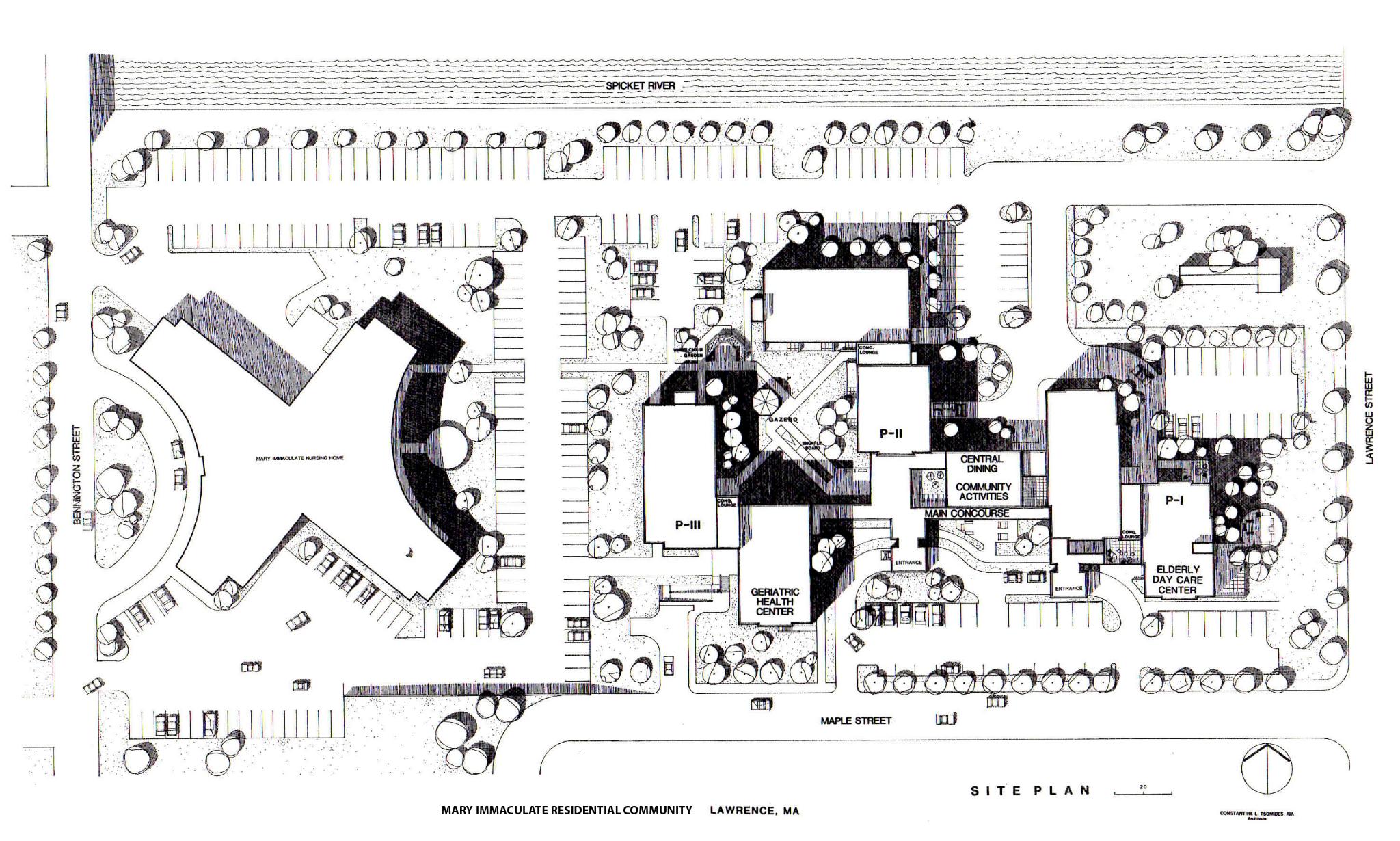

SITE PLAN

GREY NUNS OF MONTREAL: INTERLOCKING BUILDING L & Z SHAPED FOOTPRINTS PROVIDE CLEAR VIEWS FROM ALL LIVING ROOMS

MAIN ENTRANCE

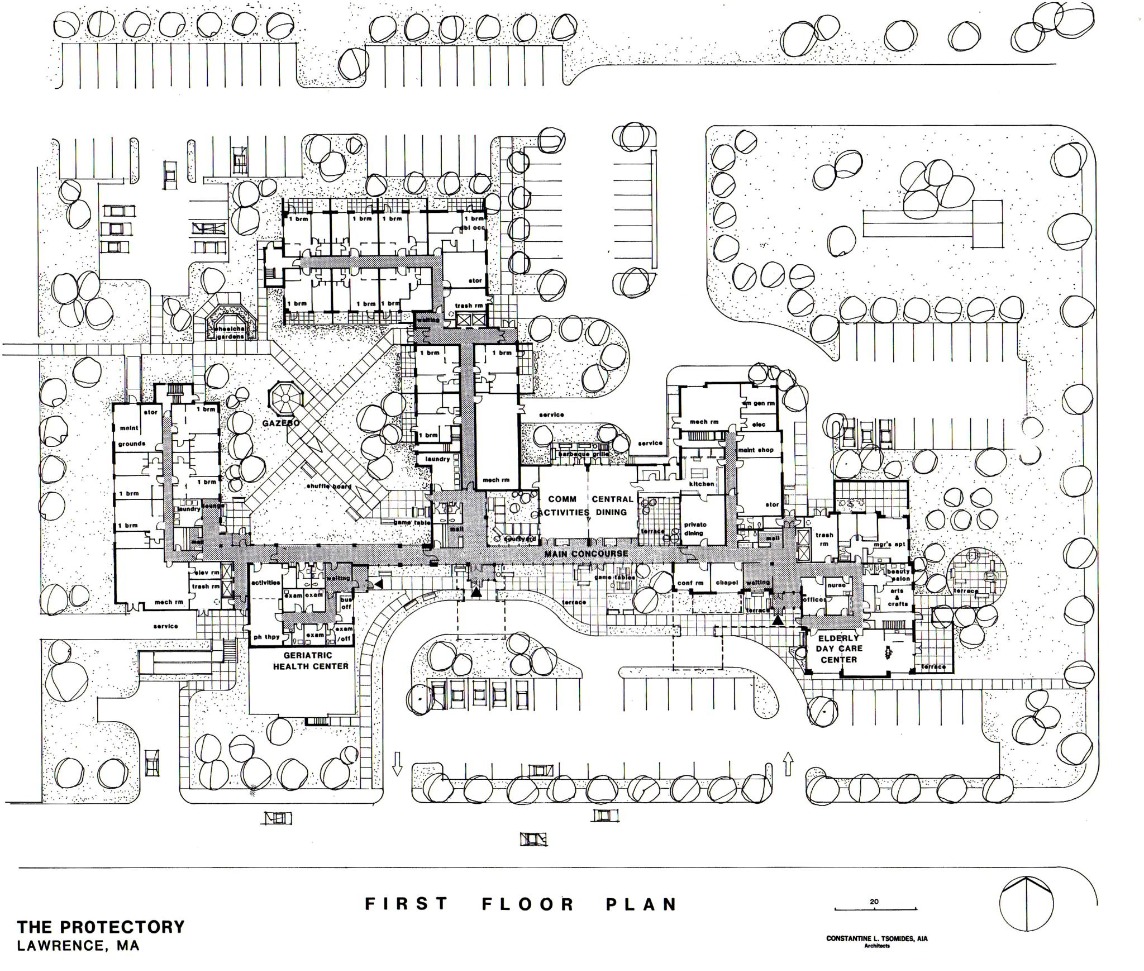

FIRST FLOOR PLAN

GREY NUNS OF MONTREAL: INTERLOCKING BUILDING L & Z SHAPED FOOTPRINTS PROVIDE CLEAR VIEWS FROM ALL LIVING ROOMS

PROJECT SCOPE

New Facility

Phase I

  • 110 One Bedroom Apartment
  • 1 Two Bedroom Manager's Apartment
  • Elderly Day Care Center
  • Central Kitchen & Dining
  • Administration
  • Chapel
  • Outdoor Recreation

Phase II

  • 90 One Bedroom Apartments
  • 16 Two Bedroom Apartments

            Convertible to 8 Four Bedroom Apartments

  • Expanded Dining & Kitchen
  • Community Activities Center
  • Main Connecting Concourse
  • Interior Dining Courtyard

Phase III

  • 78 One Bedroom Apartments
  • 10 Two Bedroom Apartments
  • Geriatric Health Center
  • Physical Therapy Department
  • Garden Gazebo

PROJECT OBJECTIVES

Expand the elderly care services of the Mary Immaculate Nursing Home to a Continuum of Care campus including congregate housing, geriatric health center, elderly day care center and a broad range of additional support services.


PROFESSIONAL SERVICES PROVIDED

  • Programming/Master Planning
  • HUD 202 Program Assistance
  • Architecture/Engineering
  • Interior Design
  • Construction Administration


Project Size

Phase I                      89,000 sq. ft.

Phase II                     88,000 sq. ft.

Phase III                    71,000 sq. ft.


Completion Dates

Phase I                      March, 1980

Phase II                     February, 1981

Phase III                    November, 1982


Cost - Total Program:    $13,400,000


Number of Units:    305
